Name: Stator Cover - Version 4 - 200cc to 250cc Engines
SKU: NOIF718853284693
Availability: InStock

Stator Cover – Version 4 – 200cc to 250cc Engines

Chinese ATVStator CoverA coverfor the left side engine. Cover is used on 200cc 250cc engines.Statorcover details:Center hole diameter from front of cover: 28.25mm (1.1 in)Length...

Categories: Engine Parts

Secure Payment Processing
Fast & Reliable Delivery
Easy Returns & Exchange

Description
Reviews (0)

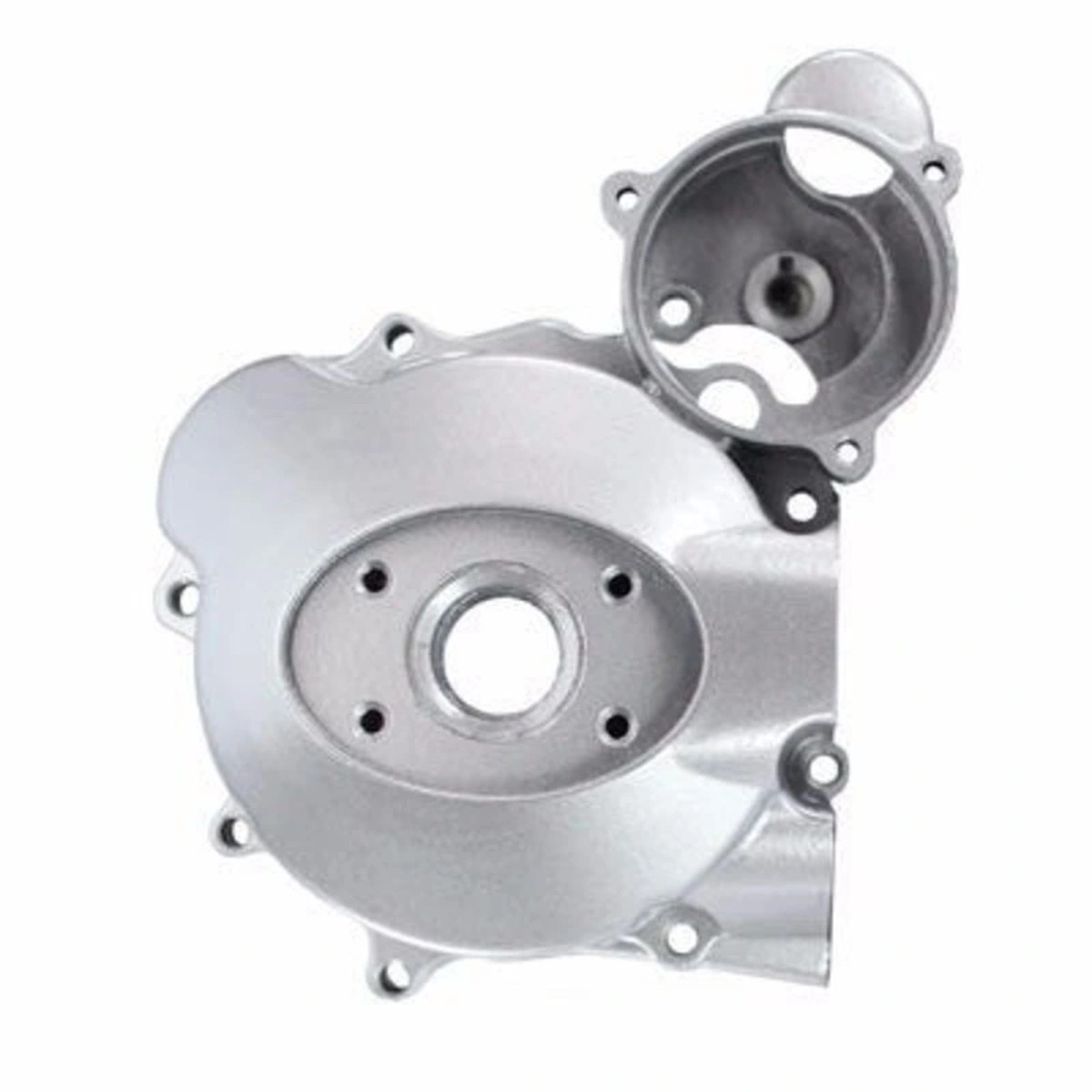

Chinese ATVStator Cover

A coverfor the left side engine. Cover is used on 200cc 250cc engines.

Statorcover details:

Center hole diameter from front of cover: 28.25mm (1.1 in)
Length at longest point: 23.75cm (8.75 in)
Inside measurement of holes on edge of cover: 35mm (1.375 in) center to center
3 hole stator mounting
Mounting distance for the stator holes: 30mm (1.18 in)
Mounting distance for the stator across center hole: 42mm (1.65 in)
Cover has the oval area for the cover plate
Also known as aleft hand engine or crank case cover

Known to fit Tao Tao ATA250D, 250 Sport Utility and more.

We recommend installing a new stator cover gasket when replacing the cover. Helps to prevent premature stator magneto failure that can be caused by crud and gunk accumulating on the stator magneto.

Shipping details:

Do you need yourcover fast? If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day. Buy now!
