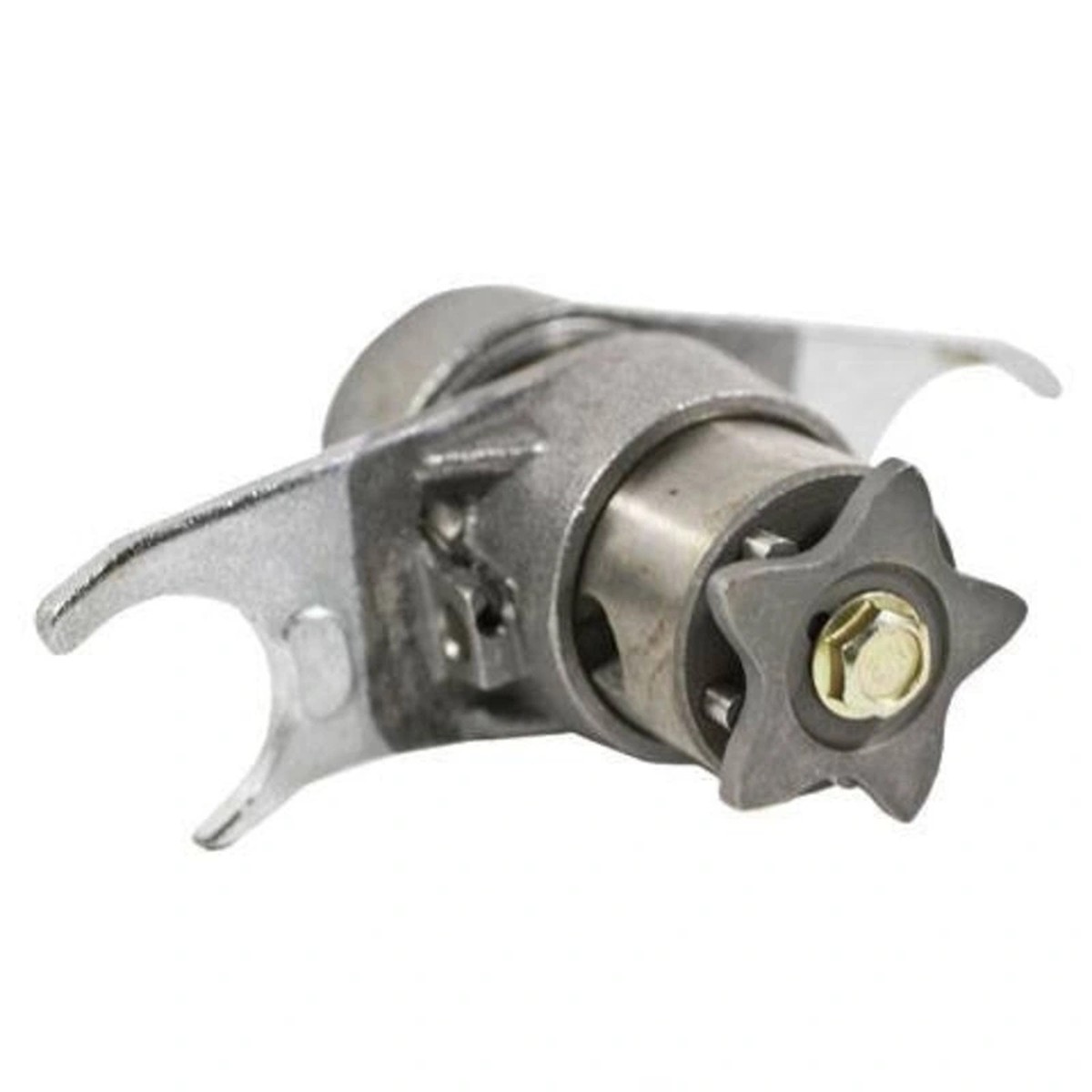

Name: Reverse Shift Fork Assy (Reverse Up) for Falcon and Baby Falcon 100cc, 110cc
SKU: NOIF718853284899
Availability: InStock

Reverse Shift Fork Assy (Reverse Up) for Falcon and Baby Falcon 100cc, 110cc

Gear Shifting Fork and Drum Assembly for Kazuma Falcon and Baby Falcon 100cc and 110cc.Type AOverall Length: 95.66mm (3.76 in) includes bolt headDiameter of drum:...

Categories: Engine Parts

Secure Payment Processing
Fast & Reliable Delivery
Easy Returns & Exchange

Description
Reviews (0)

Gear Shifting Fork and Drum Assembly for Kazuma Falcon and Baby Falcon 100cc and 110cc.

Type A

Overall Length: 95.66mm (3.76 in) includes bolt head
Diameter of drum: 34mm (1.34 in)
This shift fork is for 3 speedsemi auto with reverse transmissions
3 down 1 up
The prongs under star are 4.8mm tall
Star width: 36.85mm
Hole that goes thru drum has circle on both sides.
Width of fork closest to star end: 21.5mm
Width of fork farthest from star end: 21.5mm
Fork farthest from star end has notch. Width of fork at notch: 13.5mm
Length of notch: 19mm
Thread end ID: 5.4mm
Threaded end shaft OD: 12.8mm
